Semi Auto Sandwich Panel Machine

Semi Auto Sandwich Panel Machine

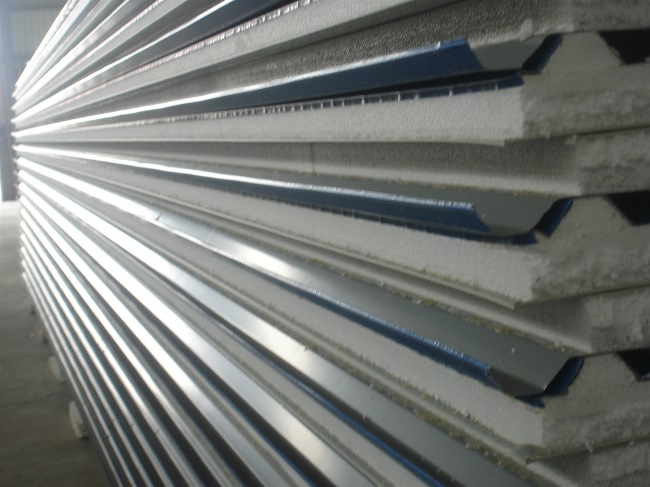

The advantage of semi auto sandwich panel machine is that it can quickly produce high-quality color steel composite panels, saving time and manpower. A production line needs 5 people to complete the operation, which is convenient for the need to meet the construction period. The service life of the equipment is long. The color steel sandwich panel is made up of two layers of color coated steel sheets as the surface layer. The materials with both rigidity and heat preservation and low strength, such as rigid foam, rock wool board and other moisturizing materials, are used as core materials.

CLASSIFICATION

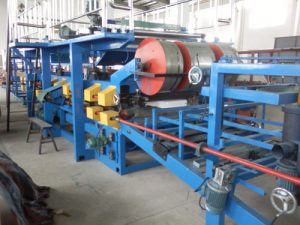

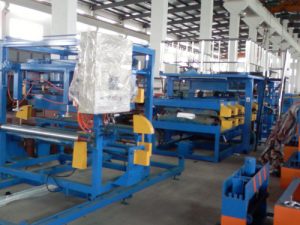

EPS/Rock Wool Sandwich Panel Machine

Speed: 0-8m/min
Power: 35kw
Weight: 22t
Dimension: 50mx2.6mx4.8m
Panel Thickness:50mm-300mm

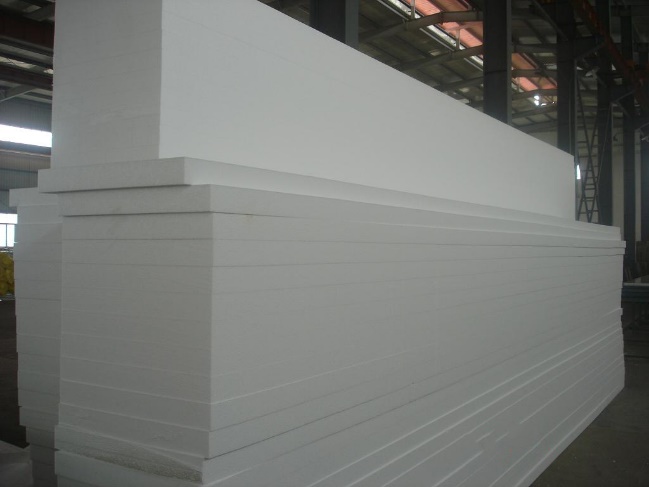

Core Material: EPS, XPS, PU board, Rock wool

PU Sandwich Panel Machine

PU sandwich panels are used for cooling board, wall panel and roof panel. Linner speed, 0-6m/min 24m long double belt tracking unit 0-12m/min 36m long double belt tracking unit 4 or 6 component PU injection machine.

USING

Industrial plant, warehouse
Cold storage, box packaging
Light steel residential, original building mezzanine

Mobile board room
Various purification rooms, air conditioning rooms

ADVANTAGE

Light weight, about 10kg ~ 14kg / square meter, equivalent to 1 / 30 of the brick wall.

Thermal insulation, good suction and sealing performance.

Convenient construction, flexible and quick installation, and the construction period can be shortened by more than 40%.

Bright color, beautiful appearance, no need to decorate the surface.

High strength, can be used for maintenance structure, load-bearing structure, bending and compression resistance, general houses can be used without beams and columns.
