Batch Pre-expander ESPB-50/110/150/160
EPS Pre-expander

Batch Pre-expander ESPB-50/110/150/160

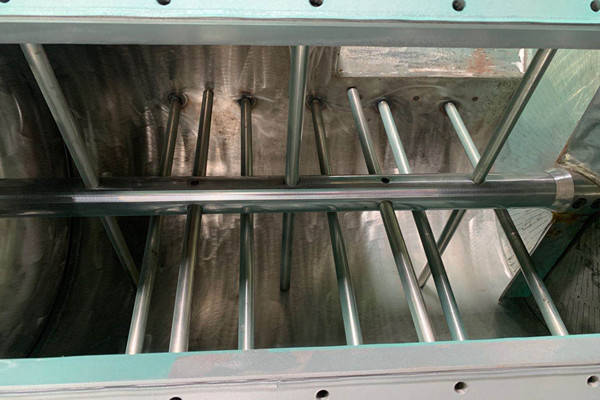

The Styrofoam Batch Pre-expansion Machine adopts PLC programmable control and touch screen control. After the raw material is added to the inside of the vertical tank, the cold air is removed by steam; while the particles are stirred by the agitator, more steam is added until the required air pressure value is reached. As the level of the expanding material of the particle rises, the particle will be expelled after the degree of expansion of the particle is reached, or the time is used to control the pre-exposure. The pressure in the batch pre-expander exceeds the atmospheric pressure, so the temperature of the steam exceeds 100 degrees.

Functions & Features
• Including common dry bed,auto-feeder,
screening and auto-weighing device.

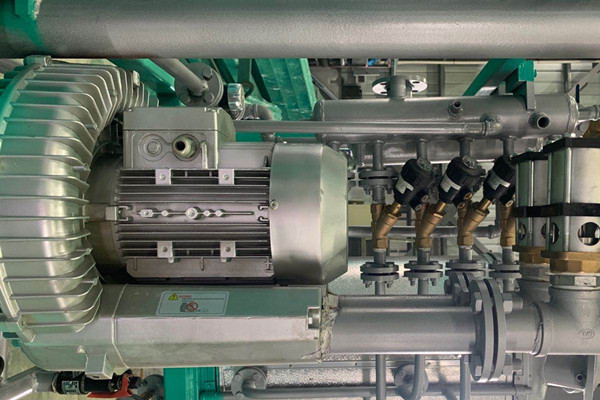

• Steam system:
controlled by relief valve and angle valve
•Filling system:
adopt electronic weighing system,set on touch screen and the equipment is available for weighing automatically
•Material level control:
controlled by photo sensor
• Electric control:
with PLC&touch screen

Batch Pre-expander ESPB-50/110/150/160

Professional group with rich experience

Hangzhou Epsole Technologies Co, leading China Batch Pre-expander ESPB-50/110/150/160 suppliers and OEM Batch Pre-expander ESPB-50/110/150/160 company located in Hangzhou, China. With over 16 years experience in EPS industry. The company is famed for its profession in R&D, manufacturing and sales of EPS machinery, moulds and accessories, as well as EPS raw materials. etc.

EPSOLE has been dedicated to provide the solutions to intelligent and unmanned manufacturing for the clients, aiming at reducing energy consumption in full-scale and improve the efficiency greatly during the production. EPSOLE is sincerely looking forward to cooperate with all customers that have interests in our products and technical services. We are confident to provide high quality service for customers from all over the world.

Clients' Interests First, by providing top products and excellent service, EPSOLE is dedicated to supplying the BEST VALUE FOR MONEY.

Friends from all over the world are warmly welcome to visit our company!

EPS pre-expander machine (also known as quantitative pre-expander machine or pressurized pre-expander machine) is mainly used to match with automatic eps molding machines. It provides EPS pre-expanding materials with uniform density and no agglomeration to meet the packaging requirements. The molding condition requirements of the product production process. The vibration-type foaming degree sensor controller is installed in front of the pre-expander machine, which can correctly sense the rising degree of the foamed particles so that the density of the pre-expanded beads is relatively uniform. It is very small to remove the occurrence of condensed water and the agglomeration of pre-expanded beads, so it can reduce the moisture content of raw materials and save heat energy. The operation of this pre-expaner machine adopts automatic program control from feeding, heating, discharging, feeding to air-drying, and the adjustment is convenient and accurate. The pre-expanded beads rise from the bottom to the top. When they reach a certain height, they can be discharged by a signal from the photoelectric cell. The action is accurate and sensitive. When the foaming pressure is stable, the density is almost the same. This is the correct choice for the molding conditions important.
